Description
Weatherproof and dust-tight 13A socket. Manufactured from robust, impact-resistant polycarbonate with multiple gland entry positions.
- IK06 Impact Resistance
- Polycarbonate Construction
- Colour-Coded Angled In-Line Terminals with Captive Screws

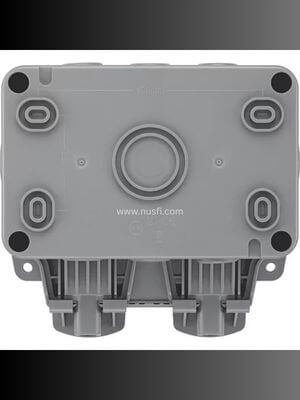

- Side & Base Knockouts

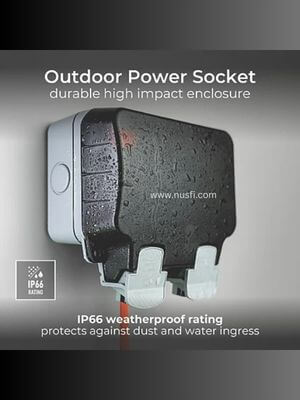

- IP66 Water & Dust Protection
- Neon Power Indicator
- Secure & Easy to Open Lid-Catch
- See-Through Cover
| Specification | |
|---|---|
| Amp Rating | 13 A |
| Brand | British General |
| Colour | Grey |
| Construction Material (Electrical) | Polycarbonate |
| Electrical Socket Product Type | Plug |
| Fixings Supplied | Fixings Not Supplied |
| IK Rating | IK06 |
| IP Rating | IP66 |
| Knockout Position | Side & Base Knockouts |
| Knockout Size | 20 mm |
| Lockable | Lockable |
| Manufacturer Guarantee | 1 Year Guarantee |
| Max. Electrical Load | 3120 W |
| Model No | WP22 |
| No. of Earth Terminals | 2 |
| No. of Knockouts | 7 |
| Number of Gangs | 2 Gang |
| Number of Poles | Single Pole |
| Pack Size | 1 |
| Pieces in Pack/Case | 1 |
| Power Voltage Supply | 240 V |
| Product Depth | 90 mm |
| Product Type | Socket |
| Smart Compatibility | Not Smart |
| Switch Operation Colour | Colour-Matched |
| Switch Position | Inboard |
| Switched/Unswitched | Switched |
| Temperature Range | -20°C to 40 °C |
| Terminal Capacity | Terminals accept 3 x 2.5mm², 2 x 4mm² or 1 x 6mm² cables |
| Terminal Description | Colour-Coded Angled In-Line Terminals with Captive Screws |
| With RCD | Without RCD |
| With USB Ports | Without USB |
| With WiFi Extender | Without WiFi Extender |
